Application of plant simulation
Demand :
- Proof of controller hard- and software per "hardware-in-the-loop" before putting into operation
- Training of the plant personnel with real controller hardware but simulated plant
Service:
- Modeling the plant with Winmod (Loop)
- Linkage of the simulation computer to Profibus DP as multislave (Linking the loop to the hardware)
- Fit binary format to PCS7
- Creation of an interactive visualization, enabling activation of valve crash, product flow interuption and
intialization per mouseclick on the simulator screen

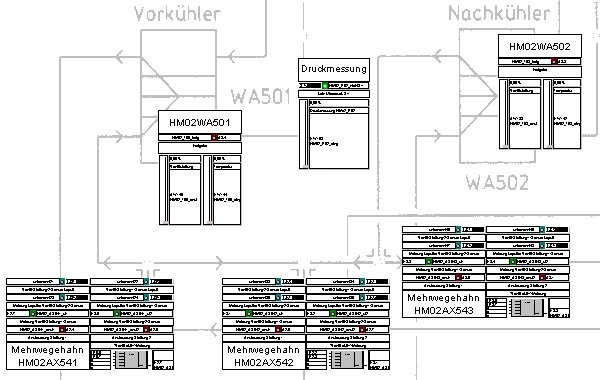

The picture shows a detail of the simulation model of a plant section with underlying process flowchart. In the
foreground one can see the displays and interactive controls. (with friendly permission of Agfa-Gevaert AG)
